3M™ Scotchlok™ Locking Fork Non-Insulated, 50/bottle, MU10-10FLX
- 3M ID 80611466683
Details
Highlights
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Spring-like tongue firmly fits around the stud
- Stud size #10
- Accommodates wire sizes 12 to 10 AWG
- Electrolytic copper construction offers good conductivity
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 50/carton, 500/case

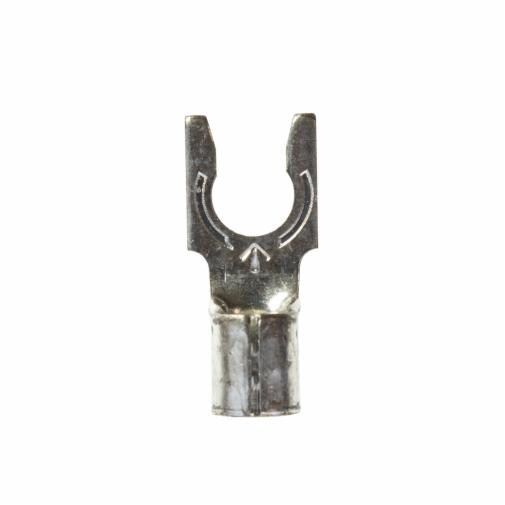

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Locking Fork Terminal has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Typical Properties
| Barrel Inside Diameter | 0.135 Inch |
| Barrel Style | Butted |
| Brands | Scotchlok™ |
| CSA File Number | LR22190 |
| Clearance (C) | 0.28 Inch |
| Insulation Material | Non-insulated |
| Maximum Lock Width | 0.36 Inch |
| Solution for | Wireless Network: Infrastructure Accessories |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E70512 |
| Units per Case | 500.0 |
